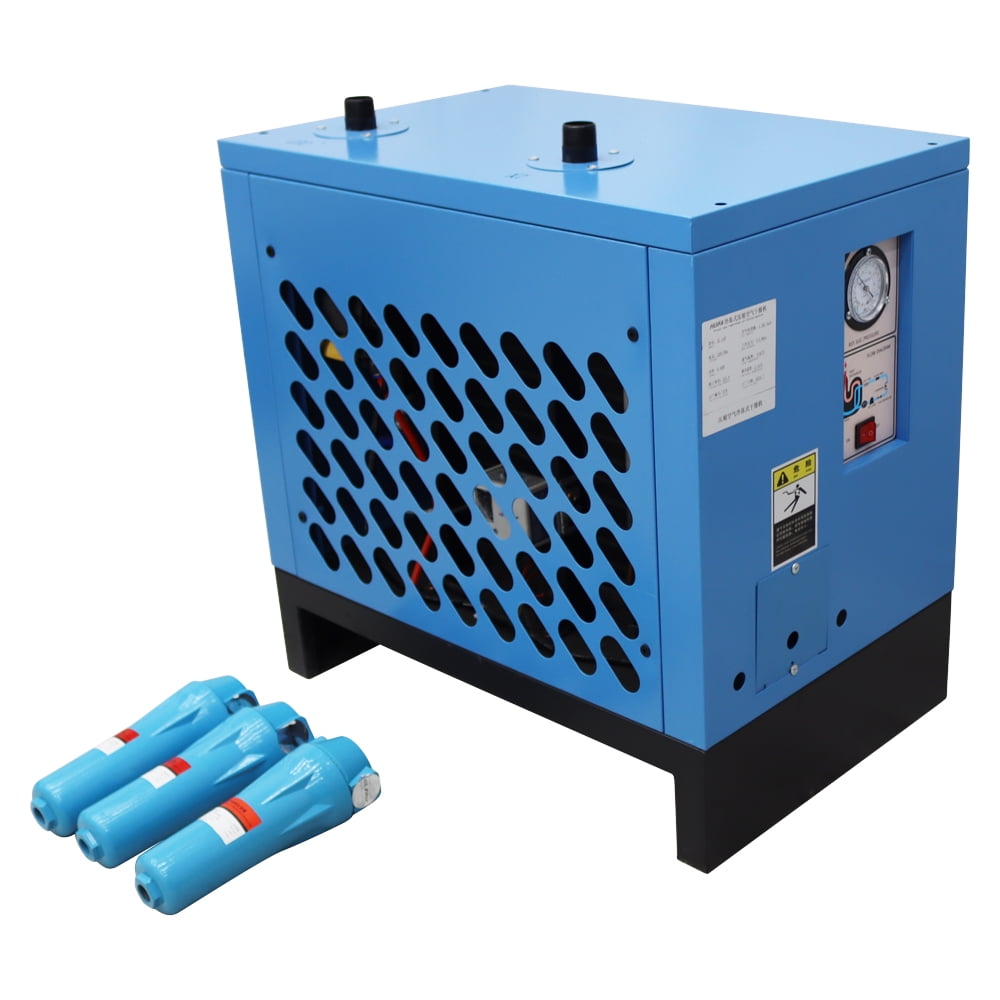

7.5C Refrigerating Cold Dryer Air Compressor Refrigerated Freeze Dryer 220V

Introduction: <br>7.5C Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer <br>Working Principle: <br>The humid and high temperature compressed air flows into the front cooler after the heat exchange into the heat exchanger and the cold air discharged from the evaporator, so that the temperature of the compressed air into the evaporator is reduced. <br>The air of the heat transfer into the evaporator through the evaporator heat transfer function and refrigerant heat exchange, the heat in the compressed air is taken away by the refrigerant, compressed air rapid cooling, the wet air moisture reaches saturation temperature rapid condensation, condensed water after condensation, after the unique air water separator high speed rotation, water due to the action of the centrifugal force and air separation, after separation of water from the automatic drainage valve. The lowest air pressure dew point after cooling can be up to 2℃ after cooling. <br>After cooling the cold air flows through the air heat exchange and inlet of hot humid hot air heat exchange, the heat exchange of cold air for absorb the heat, the inlet air and the compressed air through the freezing system of secondary condenser and high temperature refrigerant heat exchange again make the outlet temperature is fully heated, to ensure that the outlet air pipeline is not exposed. At the same time, it makes full use of the outlet air cooling source to ensure the condensation effect of the freezing system and ensure the quality of the outlet air of the machine. <br>Note: <br>Please turn on the cold dryer for about 5 minutes before using the gas. <br>It is recommended that the side of the power cable connected to the machine should be against the wall, with the front side at least 1 meter away from the wall and the back side at least 20 cm away from the wall. <br>The drain time can be adjusted. If it needs to be adjusted longer, the SEC key on the left can be adjusted to 2 seconds, and the MIN key on the right can be adjusted to 5 minutes (0-10 middle). <br>Be sure to wrap raw material tape or use liquid sealant when installing. <br>Different places have different Receptacles. Please note this plug and consult your electrician before purchase. <br>This machine needs to be connected to the power source for use by the customer. <br>The following two types of panels are delivered with the product. <br> <br>Parameter: <br>Flow Capacity: 35CFM <br>Refrigerant Type: R134A <br>Voltage: 220V <br>Power: 600W <br>Interface Pipe Diameter: ZG0.6 <br>Air Capacity: 1.0M³/MIN <br>Work Pressure: ≤1.0MPA <br>Inlet Temperature: ≤45℃ <br>Dew Point Temperature: 2-10℃ <br> <br>Items Included: 239847-EnzY <br>7.5C Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer

• The humid and high temperature compressed air flows into the front cooler after the heat exchange into the heat exchanger and the cold air discharged from the evaporator, so that the temperature of the compressed air into the evaporator is reduced.
• The air of the heat transfer into the evaporator through the evaporator heat transfer function and refrigerant heat exchange, the heat in the compressed air is taken away by the refrigerant, compressed air rapid cooling, the wet air moisture reaches saturation temperature rapid condensation, condensed water after condensation, after the unique air water separator high speed rotation, water due to the action of the centrifugal force and air separation, after separation of water from the automatic drainage valve. The lowest air pressure dew point after cooling can be up to 2℃ after cooling.
• After cooling the cold air flows through the air heat exchange and inlet of hot humid hot air heat exchange, the heat exchange of cold air for absorb the heat, the inlet air and the compressed air through the freezing system of secondary condenser and high temperature refrigerant heat exchange again make the outlet temperature is fully heated, to ensure that the outlet air pipeline is not exposed. At the same time, it makes full use of the outlet air cooling source to ensure the condensation effect of the freezing system and ensure the quality of the outlet air of the machine.
• Environmental friendly. This machine adopt R134a environmental protection refrigerants, the destruction to the atmosphere is zero and meet the needs of the international market.
• Easy To Install. Easy installation with the compact design is ready to use with a small footprint,matches the compressor's displacement, saving energyeasy maintenance and improved reliability.
